Noise Control Polyvinyl Butyral Sheet Sound Insulation For Double Glazing

Product Categories
Jiangxi Huatesheng New Material Limited Company
Contact Now

Noise Control Polyvinyl Butyral Sheet Sound Insulation For Double Glazing

Brand Name : ZHECHUN

Model Number : CZ01

Place of Origin : China

MOQ : 1 Roll

Payment Terms : T/T, L/C

Supply Ability : 15,000,000 square meter per year

Delivery Time : 10 days after deposit

Packaging Details : aluminum foil and wooden box

Material : Polyvinyl Butyral

Haze : 0.6%

Light transmittance : 87%

Shringking : 8%

Roughness : 28-50 um

Elongation at peak : 200%

Tensile strength : 20MPa

Use for : building and automobile glass

available time : 15-20 year

Contact Now

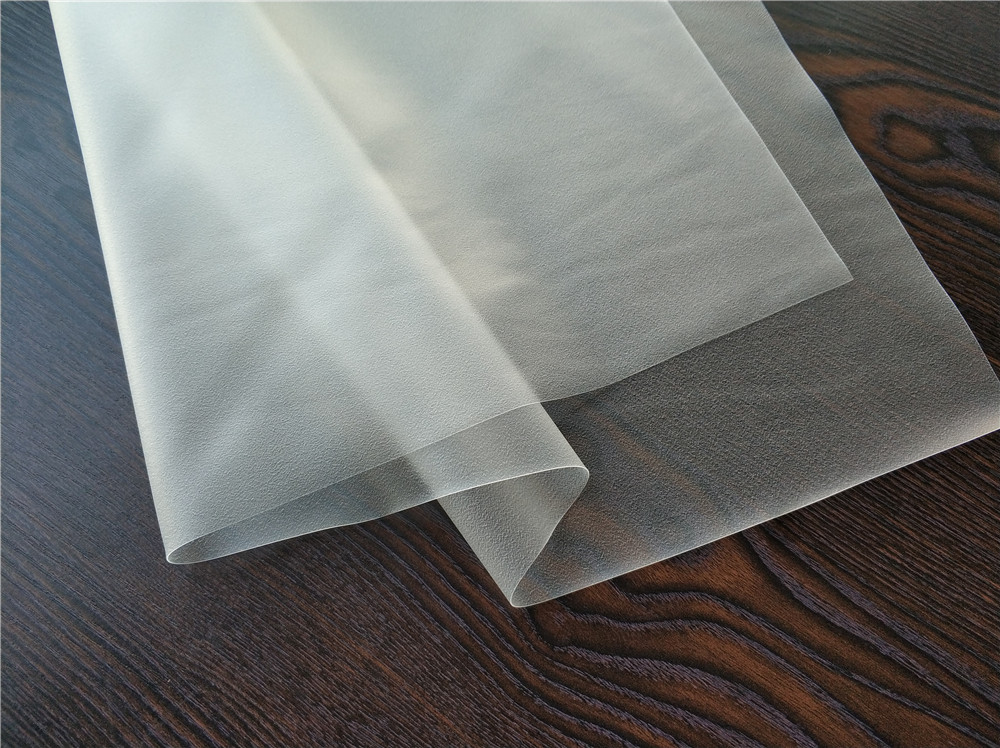

noise control polyvinyl butyral sheet for double glazing



polyvinyl butyral sheet, also called PVB sheet, are extruded mixture of special plasticizer, additives and PVB resin that form PVB films with even thickness.



PVB sheet are primarily applied in laminated glass that is a construction of two or more pieces of glass. The high adhesive PVB films are clamped between layers, so PVB films must equip with excellent adhesion, light transmission and safety.



Noise Control Polyvinyl Butyral Sheet Sound Insulation For Double Glazing



Specifications

surface roughness RZ35±10
color clear or depends on customer request
Appearance



level off, no crease, no nick



Thickness



0.38mm± 0.019mm

0.76mm± 0.03mm
Degree of moisture



0.4-0.6%



Tensile strength



more than or equal to 20.0mpa



Elongation At Breakage



more than or equal to 200%
Shrinkage less than or equal to 8%



Transmittancy



more than or equal to 90%



Haze



less than or equal to 0.3%
Others none



Noise Control Polyvinyl Butyral Sheet Sound Insulation For Double Glazing

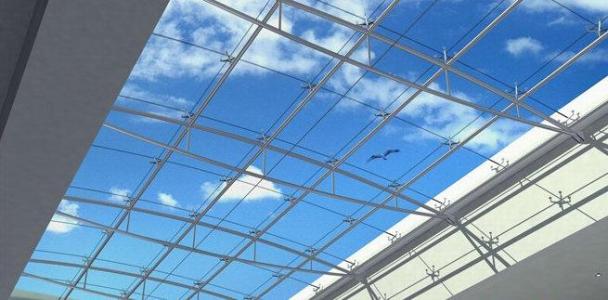

Advantage for PVB laminated glass:



Safety 



Energy saving



Sound proof



Laoding:about 20,000 square meter/20 feet container
